Catwalks
Engineered Access Solutions for Safe and Efficient Operations
Apex Industrial catwalks are engineered by licensed Professional Engineers to provide safe, reliable access in agricultural and industrial facilities. Each catwalk system is designed to meet site-specific requirements while supporting efficient installation and long-term use.
Engineering Excellence
Apex Industrial catwalks are designed using advanced 3D modeling and engineered to integrate seamlessly with towers, equipment, and existing structures. Designs prioritize safety, durability, and constructability while meeting applicable codes and operational requirements.
- Designed and reviewed by licensed Professional Engineers
- Engineered for site-specific loading and access requirements
- Designed in accordance with ASCE 7-16 and AISC 14th Edition
- OSHA 1910 considerations for walkways, handrails, and access safety
- Optimized layouts for efficient steel usage and clean installation
- Fabricated for straightforward field assembly and long-term performance
Specifications

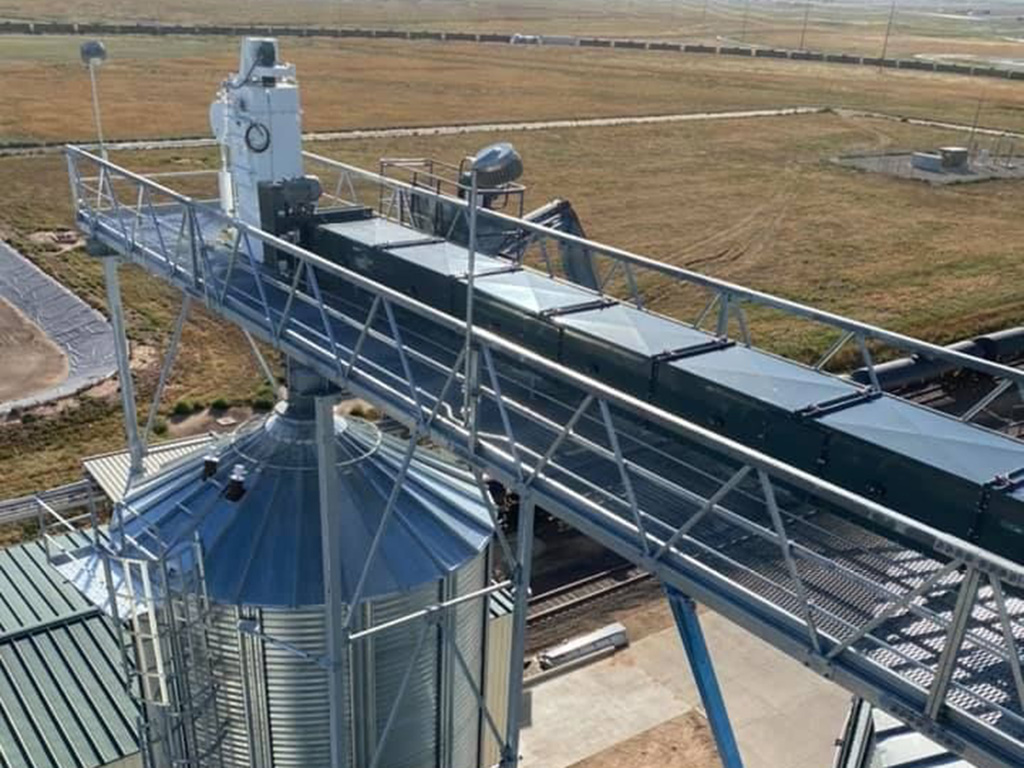

- Handrail Truss Catwalk – HT (Width 3′ – 16’)
- Outrigger Handrail Truss Catwalk – OT (Width 4′)
- Walk Thru Truss Catwalk (Width 6′ +)
- Square / rectangular tube design
- Simple, intuitive assembly saves field time
- Single bolt, double connection plate – strut & diagonal connections
- Greatly reduces number of bolts vs traditional industry designs (fewest in the industry)
- Reduces number of members vs traditional industry designs (no more spacers)
- Square / Rectangular Tube Design
- Lap Splice Chord Connection — Limits Deflection
- Fully Welded Sections Available
- Optimal Number of Pieces for Efficient Field Labor with Freight Savings
- Walk Around Service Platforms
- Conveyor Support Stringers
- Trolley Beams for Walk Thru Truss Catwalks
- Mitered/Beveled Ends
- 24” Grip Strut

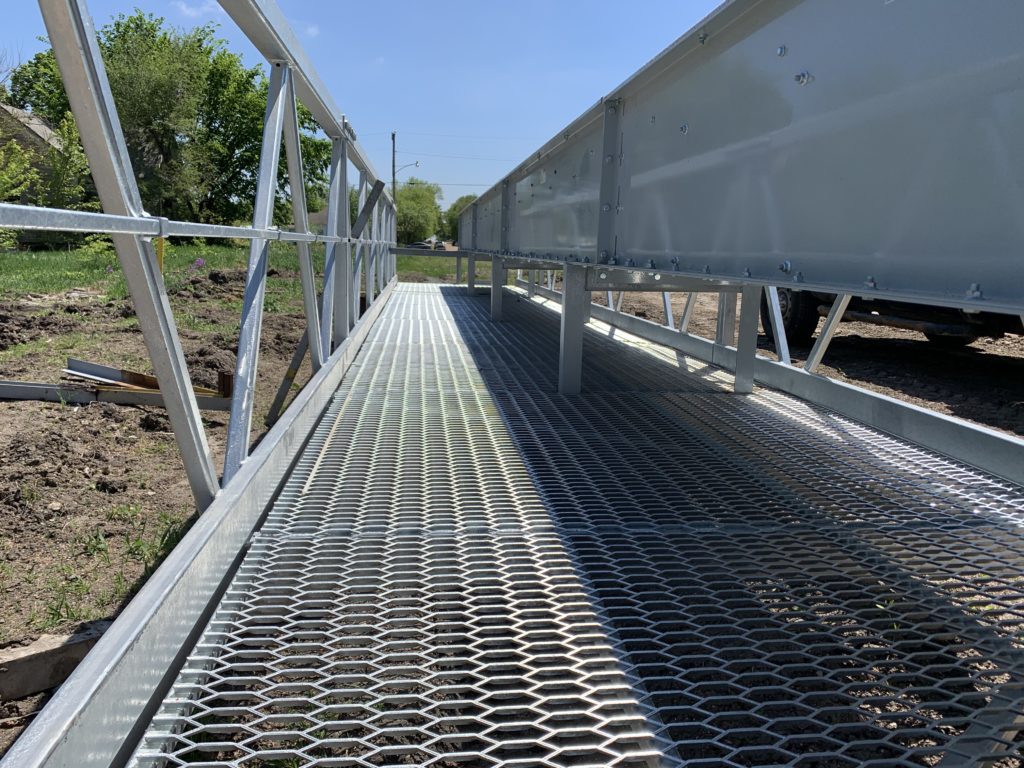

- Full Width or Partial Expanded Metal
- Full Width or Partial Bar Grating
- Full Width or Partial Fiberglass
- Checkered Deck Plate
